Product Specification: 2D Wired Barcode Scanner |
||
| Scanner parameters: | ||
| CPU：ARM 32-bit Cortex | Sensor：CMOS 640*480 | |
| Resolution ：4mil | Light aimer：617nm LED | |
| Printing Contract ：≥25% | Material：ABS+PC | |
| Indication：Buzzer & LED | Drop test ：1.8m | |
| Decoding speed：500scans/sec | Anti inference：0-100000Lux Max | |
| Button life ：5000,000 times | Voltage:5V DC | |
|
Depth of Field |
13mil-EAN13 | 40-250mm |
| 4mil-code39 | 50-90mm | |
| 20mil-QR | 40-290mm | |
| 10mil-PDF417 | 40-260mm | |
| Decode Capability：
1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128 ， Code 39，Code 93，Code 11，Interleaved 2 of 5 ，Matrix 2 of 5 ，Standard 2 of 5 ，Coda bar ，MSI Plessey ，RSS ，Codabar ，ISBN 、 ISSN 、GS1 DataBar(RSS14)etc. 2D: QR Code 、Micro QR 、Data Matrix 、PDF417 、Micro PDF417 、Aztec |
||
| Trigger Mode：Handheld,Continuous, Auto-Induction | ||
| Scanning angle：Angle of rotation360° , inclination± 65° ,declination ± 60° | ||
| Current： 80mA(working current), 30mA(standby current ) | ||
| Temperature： -20℃-50℃(Working) -40℃-60℃(Storage) | ||
| Interface ：USB / RS232 | ||
| Operating Humidity: 5 – 95% (non-condensing) | ||
| Certificate ：CE ，FCC ，RoHS ，IP54 | ||

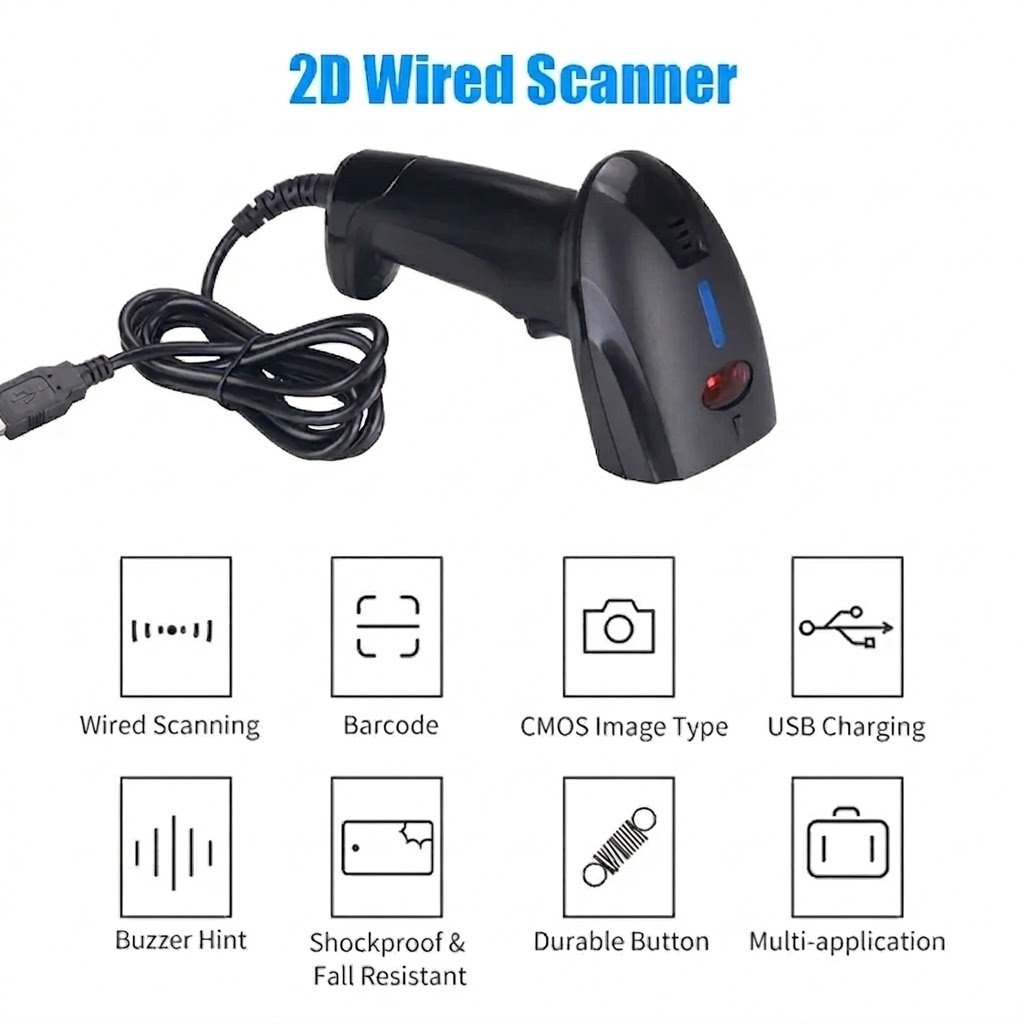

2D Wired Barcode Scanner
25 د.ا
2D Wired Barcode Scanner
● Color：Yellow/ Black/ Blue Optional.
● No driver needed, plug and play.
● Support reading bar codes from screen.
● Applying CMOS image technology, easy to scan.
● Powerful decode ability, fast scanning 1D/2D barcodes.
● Support the multinational language keyboard.
● Supports Handheld / Continuous / Auto-Induction, 3modes for option.
● Comes with adjustable stand and Adjust the angle and height according to the need.
● Dopt a highly integrated design, high quality shell, have IP45 protection grade.

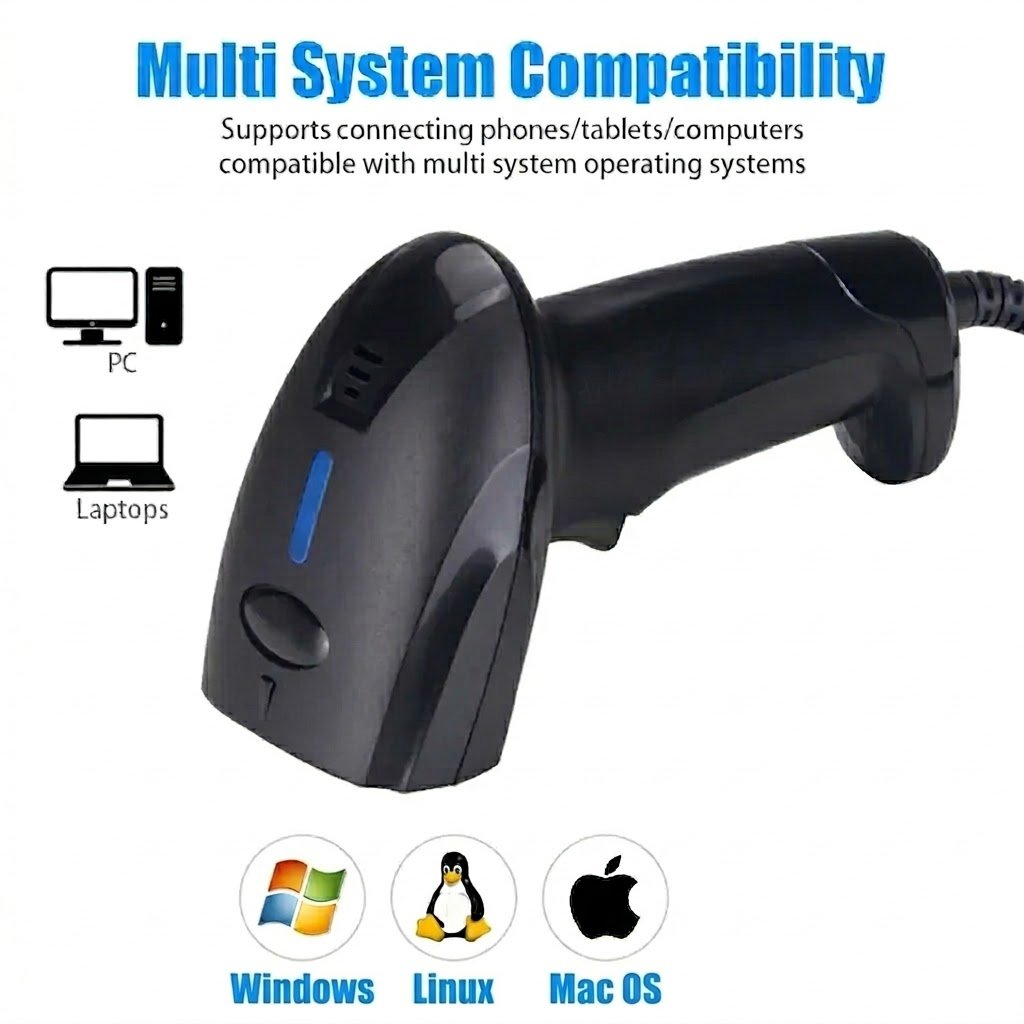

● Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8, 10, 11,MAC.
● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
