Specifications
| Feature | Specification |
|---|---|

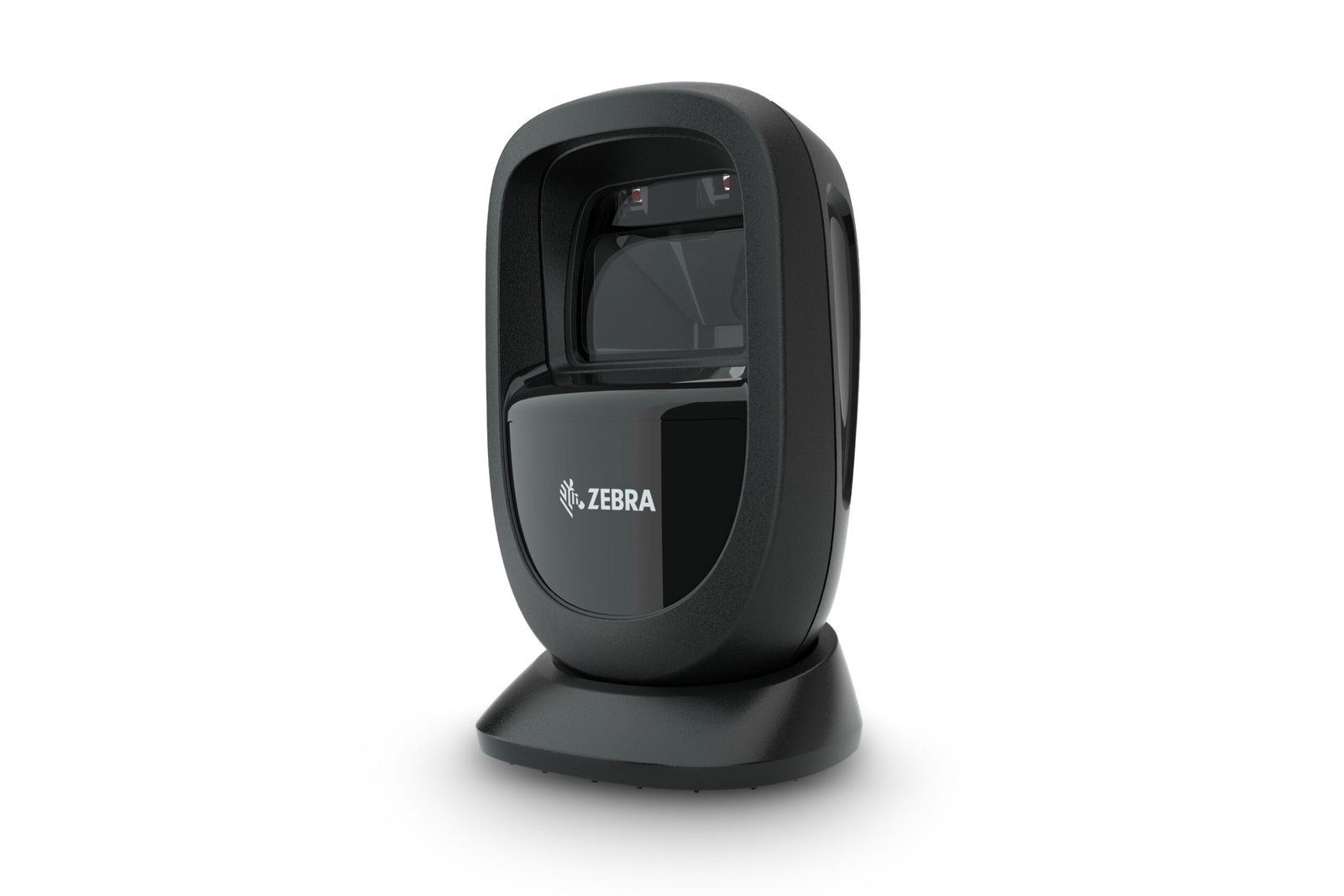

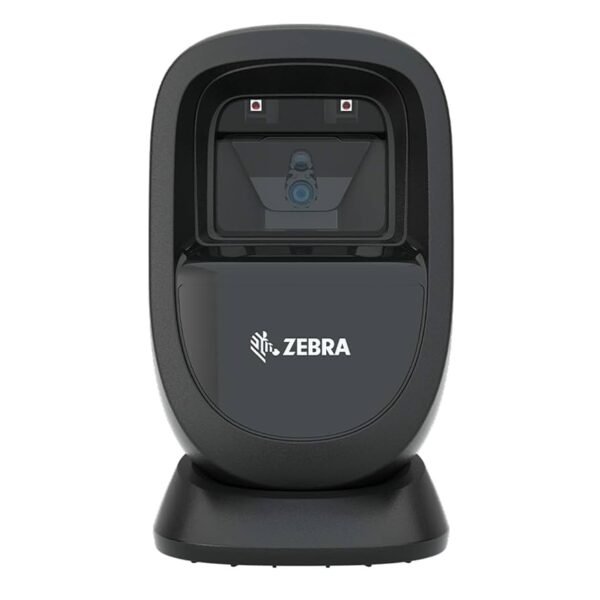

| Model | Zebra DS9308 |
| Type | Presentation 1D/2D Barcode Scanner |
| Image Sensor | 1280 × 800 pixels |
| Field of View | 52° horizontal × 33° vertical |
| Light Source | 660 nm Hyper Red LED |
| Scan Speed | Up to 120 in./sec (305 cm/sec) |
| Drop Resistance | Multiple drops from 1.5 m (5 ft) to concrete |
| Environmental Sealing | IP52 rated |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Ambient Light Immunity | Up to 107,700 lux |
| Interfaces Supported | USB, RS-232, Keyboard Wedge, TGCS (IBM 46XX) over RS-485 |
| Supported Symbologies | 1D, 2D, PDF417, QR Code, DataMatrix, Aztec, OCR |
| Dimensions (H × W × D) | 14.5 × 8.6 × 8.3 cm |
| Weight | 318 g |
| Power (Typical) | 5 VDC ±10%, 350 mA (active), 135 mA (idle) |
| Warranty | 3 years standard
|
